Analysis is an applicable superstructure of the MicroStation system which enables the user to make element arrangements, included in the attached design file.

    Analysis  is marked by following properties:

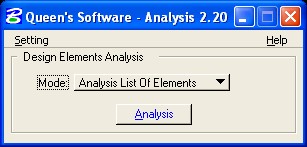

• All the most important tools of the application are placed in the main dialog box..

• The user can choose the common analysis, where are only primitive system elements in the arrangement (cells, lines, multi-lines etc.) or he can select the complete analysis, in which there are other elements in the output arrangement such as B-spline curves, rasters and so on.



• It is also possible to make the analysis of complex elements.

• It is possible to export the completed arrangement into a text file.

• After the first start of the application there will be made the file analysis.rsc in the directory structure (the variable MS_DATA) of MicroStation, in which all recently set values will be saved - it means after the next start of the application Analysis will the values stay the same as they were with the previous start.

    Help of the Analysis application is available directly from MDL application Analysis on the internet.

    Analysis is available for MicroStation V8i, PowerDraft V8i and Bentley MaP PowerView V8i on the Windows XP/Vista/7/8 platform.
